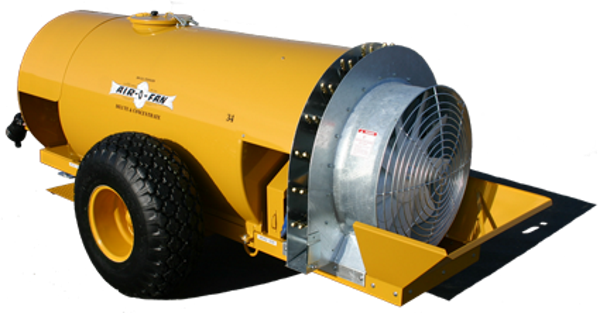

Air-O-Fan's commercial-grade, introductory-line PTO-driven sprayer is the G3-534/36, known for its big performance in a compact simple package. This model is the "3rd generation" to our retired G2-500 model line. The G3 has an added bonus for growers farming both orchard & vineyard crops, by removing a few simple bolts one is able to remove our vineyard attachments and go directly into an orchard application. Standard features include: a 304 stainless steel tank, adjustable spindles, heavy duty constant velocity PTO shaft, 1" stainless steel mechanical agitation, 34" & 36" diameter high performance axial flow steel fan, 2-row stainless steel short stack vineyard tower with up-spray volutes (or our single-row vineyard volute tower), and composite nylon adjustable air vanes with specialty valves. If you're in the market for a commercial-grade, base-line sprayer with powerful performance at an affordable price, the G3 series is the one to fit your needs!
Standard Features
- 500 gallon 304 stainless steel tank
- 36 GPM / 600 PSI Comet© diaphragm pump
- 34" diameter, 8-blade axial flow steel fan
- 2-speed gearbox with neutral
- Heavy duty PTO shaft
- Tank drive shaft with rundown clutch
- 1" 304 stainless steel mechanical agitation
- Cable type remote control
- 304 stainless steel strainers
- Teejet© ceramic nozzles
- Galvanized fan housing
- Composite nylon adjustable air vanes with specialty valves
- 13.5Lx16.1 ribbed implement tires
- Heavy duty hubs and spindles
- Either short stack tower with up-spray volutes OR Vineyard volute tower
Options
- 600 gallon tank upgrade
- DK turning and 2-point turning hitches
- 100 GPM / 145 PSI Myers© 2-stage centrifugal pump
- 53 GPM / 600 PSI Comet© diaphragm pump (IDS 2200)
- Hydraulic and electric spray control valves
- 2" and 3" stainless steel fill connections
- Tank drain plumbed with valve
- Tree targeting, flow monitoring, and rate controlling systems
- Rear leaf guard
Specifications Short Stack
- Length 14' 3"
- Width 78"
- Height 62" to 68" (top of tank) / 109" (top of tower)
- Weight 2,625 pounds
- Air Velocity 130 mph (approximate)
PTO Horse Power Requirements: 75 – 95
Specifications Volute
- Length 14' 3"
- Width 78"
- Height 62" to 68" (top of tank) / 109" (top of tower)
- Weight 2,425 pounds
- Air Velocity 130 mph (approximate)
PTO Horse Power Requirements: 75 – 95
